Measures linkage #

Assets and devices can be linked through common measurements.

An asset can have measures linked with different devices. Similarly a device can have measures linked with different assets. Each digitial twin can have only one link per measure slot.

Link in digital twins #

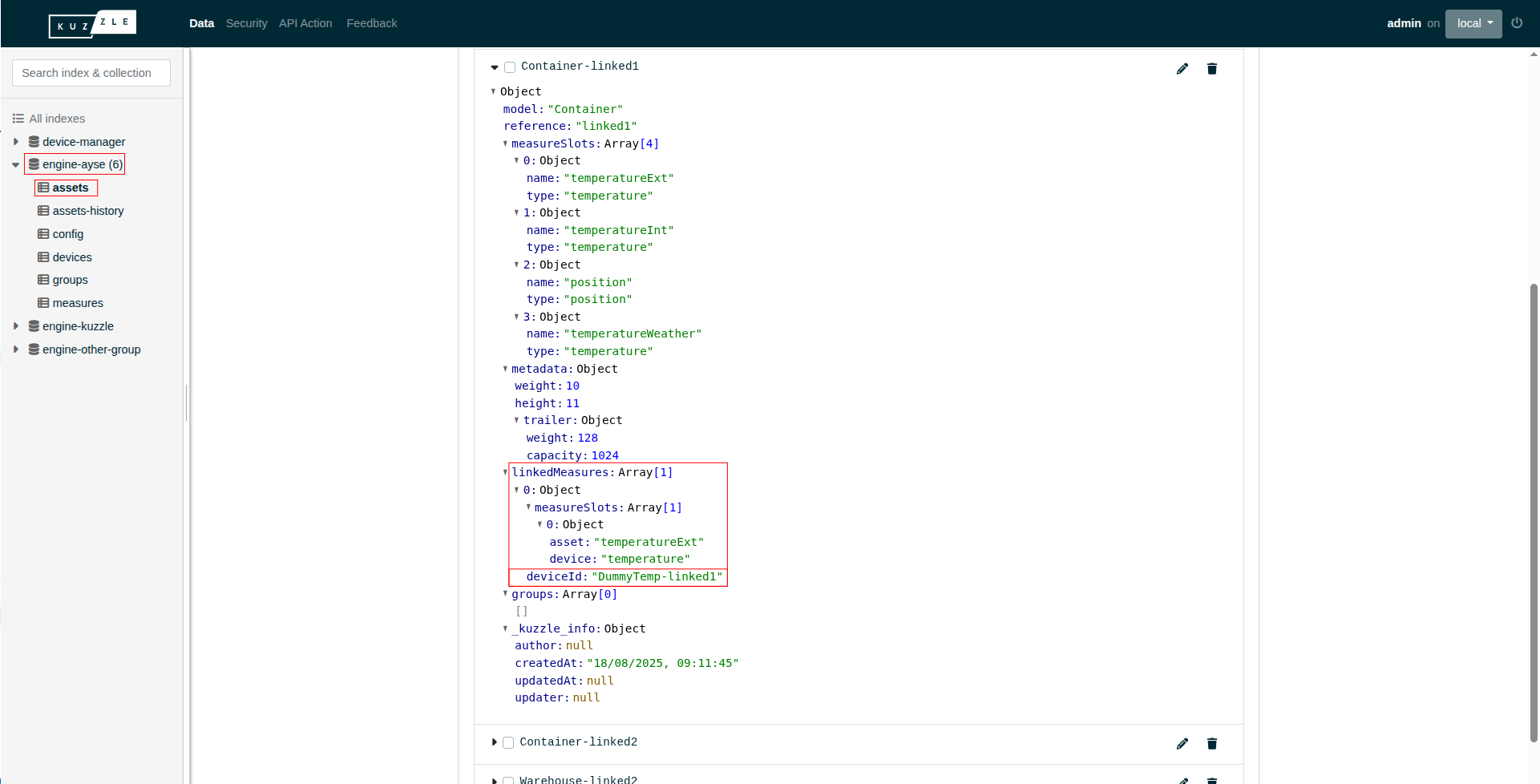

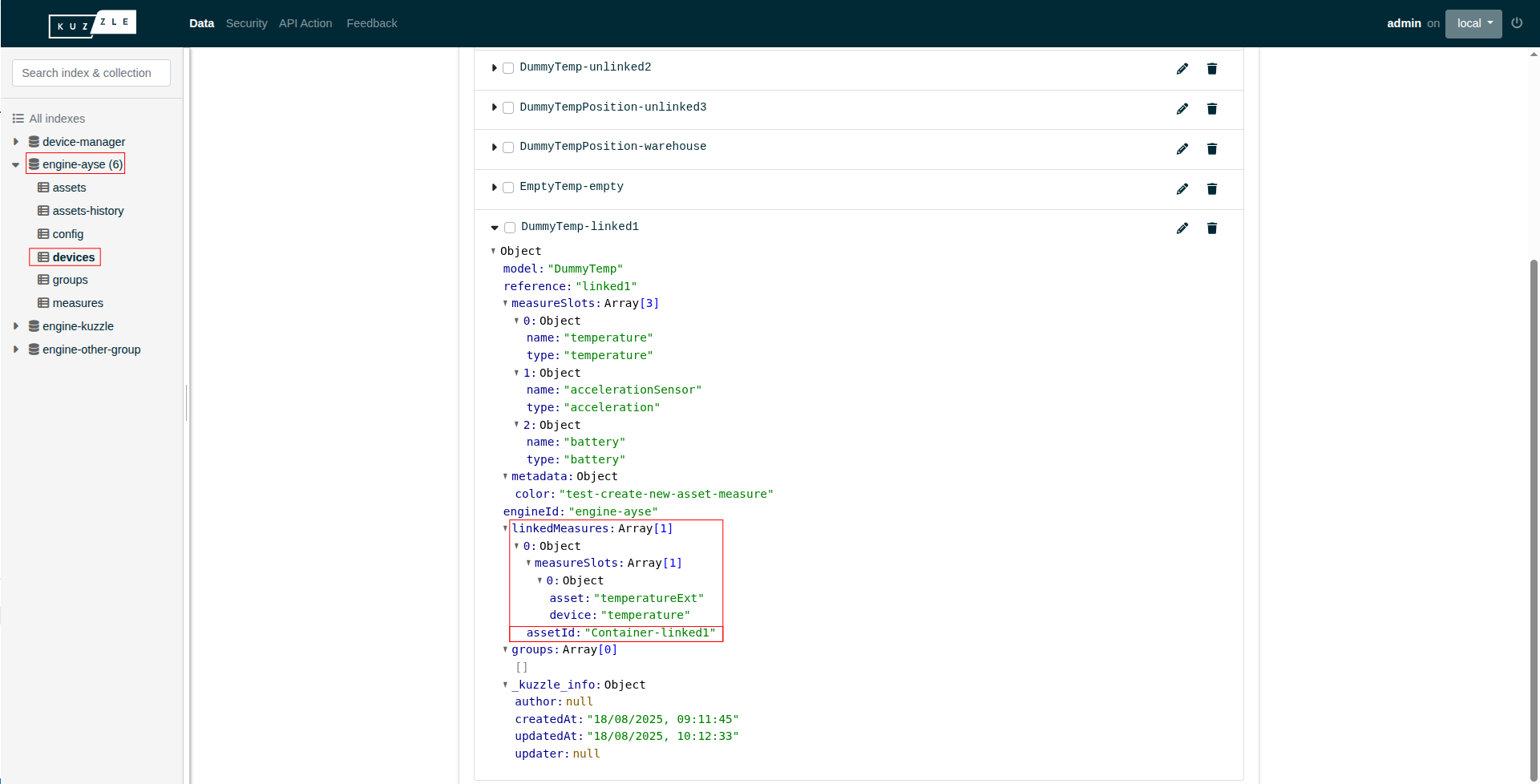

In the tenant index, the link will be displayed in the array linkedMeasures of the devices and assets collections. Each item of this array represents a link with a digital twin. It contains:

• The assetId or deviceId depending of the type of the digital twin.
• An array of measureSlots linked between the two digital twins. Those slots indicates the name of the measurement used for the asset and for the device.

Link in measures #

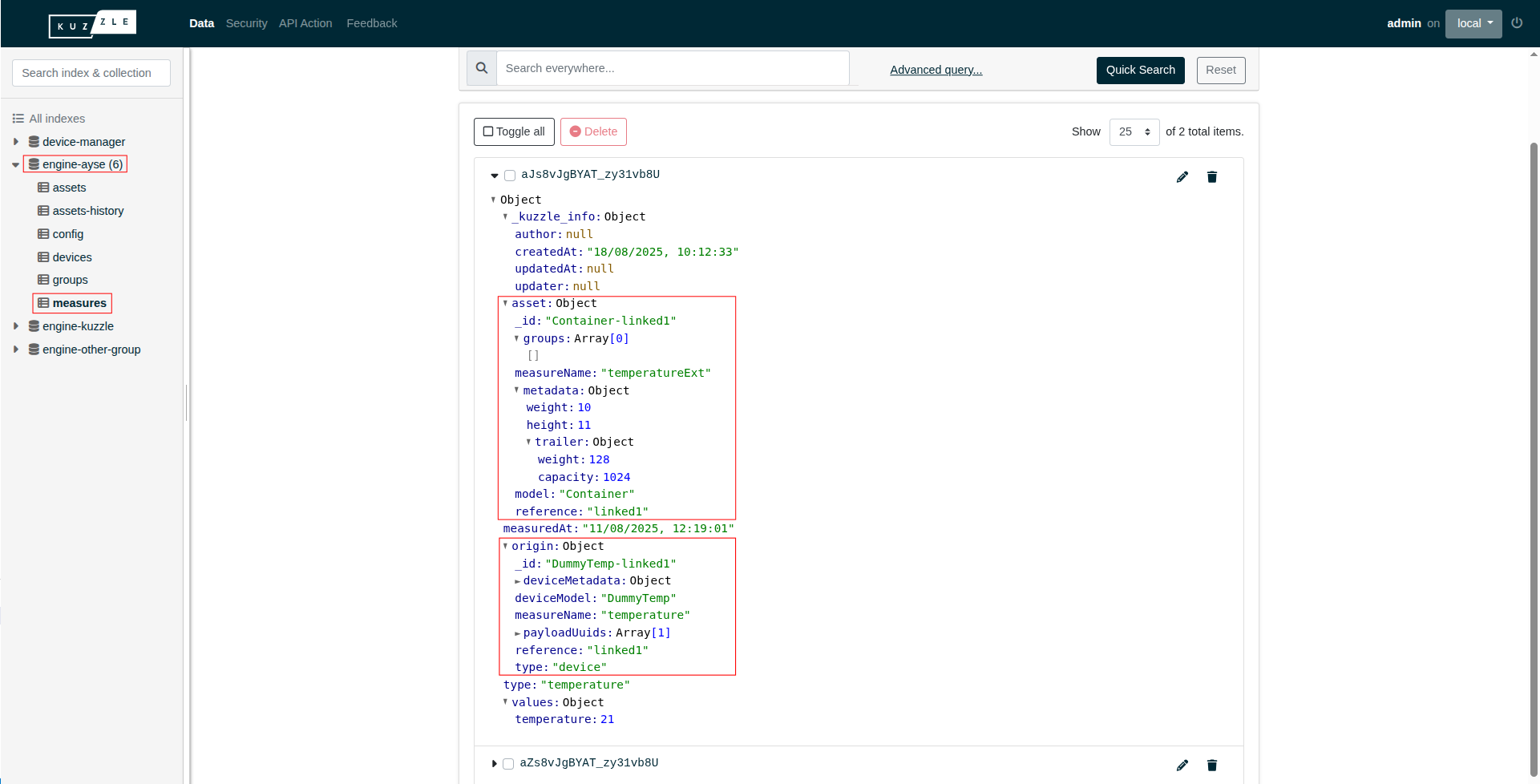

In measure documents, the device is represented in the origin property, if an asset measure is linked to it, it appears in the asset property.
